Create Plane CRUD

Create the Plane Entity

• In '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Domain\Fleet\Entities'.
• Create empty class 'Plane.cs' and add:

// <copyright file="Plane.cs" company="MyCompany">
//     Copyright (c) MyCompany. All rights reserved.
// </copyright>

namespace MyCompany.MyFirstProject.Domain.Fleet.Entities
{
    using System;
    using System.Collections.Generic;
    using System.ComponentModel.DataAnnotations.Schema;
    using BIA.Net.Core.Domain.Entity;

    /// <summary>
    /// The plane entity.
    /// </summary>
    public class Plane : BaseEntity<int>
    {
        /// <summary>
        /// Gets or sets the id.
        /// </summary>
        public int Id { get; set; }

        /// <summary>
        /// Gets or sets the site.
        /// </summary>
        public virtual Airline Airline { get; set; }

        /// <summary>
        /// Gets or sets the site id.
        /// </summary>
        public int AirlineId { get; set; }


        /// <summary>
        /// Gets or sets the Manufacturer's Serial Number.
        /// </summary>
        public string Msn { get; set; }

        /// <summary>
        /// Gets or sets a value indicating whether the plane is active.
        /// </summary>
        public bool IsActive { get; set; }

        /// <summary>
        /// Gets or sets the last flight date.
        /// </summary>
        public DateTime? LastFlightDate { get; set; }

        /// <summary>
        /// Gets or sets the delivery date.
        /// </summary>
        [Column(TypeName = "date")]
        public DateTime? DeliveryDate { get; set; }

        /// <summary>
        /// Gets or sets the daily synchronization hour.
        /// </summary>
        [Column(TypeName = "time")]
        public TimeSpan? SyncTime { get; set; }

        /// <summary>
        /// Gets or sets the capacity.
        /// </summary>
        public int Capacity { get; set; }
    }
}

Update Data

Open the 'PlaneModelBuilder.cs' in '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Infrastructure.Data\ModelBuilders' and add :

        public static void CreateModel(ModelBuilder modelBuilder)
        {
        ...
            CreatePlaneModel(modelBuilder);
        }

        /// <summary>
        /// Create the model for planes.
        /// </summary>
        /// <param name="modelBuilder">The model builder.</param>
        private static void CreatePlaneModel(ModelBuilder modelBuilder)
        {
            modelBuilder.Entity<Plane>().HasKey(p => p.Id);
            modelBuilder.Entity<Plane>().Property(p => p.Msn).IsRequired().HasMaxLength(64);
            modelBuilder.Entity<Plane>().Property(p => p.IsActive).IsRequired();
            modelBuilder.Entity<Plane>().Property(p => p.LastFlightDate).IsRequired(false);
            modelBuilder.Entity<Plane>().Property(p => p.DeliveryDate).IsRequired(false);
            modelBuilder.Entity<Plane>().Property(p => p.SyncTime).IsRequired(false);
            modelBuilder.Entity<Plane>().Property(p => p.Capacity).IsRequired();
        }

Update DataContext file

Open '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Infrastructure.Data\DataContext.cs' file and declare the DbSet associated to Plane:

/// <summary>
/// Gets or sets the Plane DBSet.
/// </summary>
public DbSet<Plane> Planes { get; set; }

Update the DataBase

• In VSCode (folder MyFirstProject) press F1
• Click "Tasks: Run Tasks".
• Click "Database Add migration SqlServer" if you use SqlServer or "Database Add migration PostGreSql" if you use PostGerSql.
• Set the name "NewFeaturePlane" and press enter.

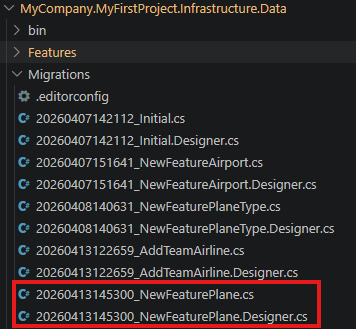

• Verify new file 'xxx_NewFeaturePlane.cs' is created on '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Infrastructure.Data\Migrations' folder, and file is not empty.

• In VSCode Run and Debug "DotNet DeployDB"

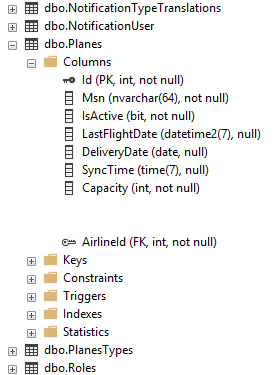

• Verify 'Planes' table is created in the database.

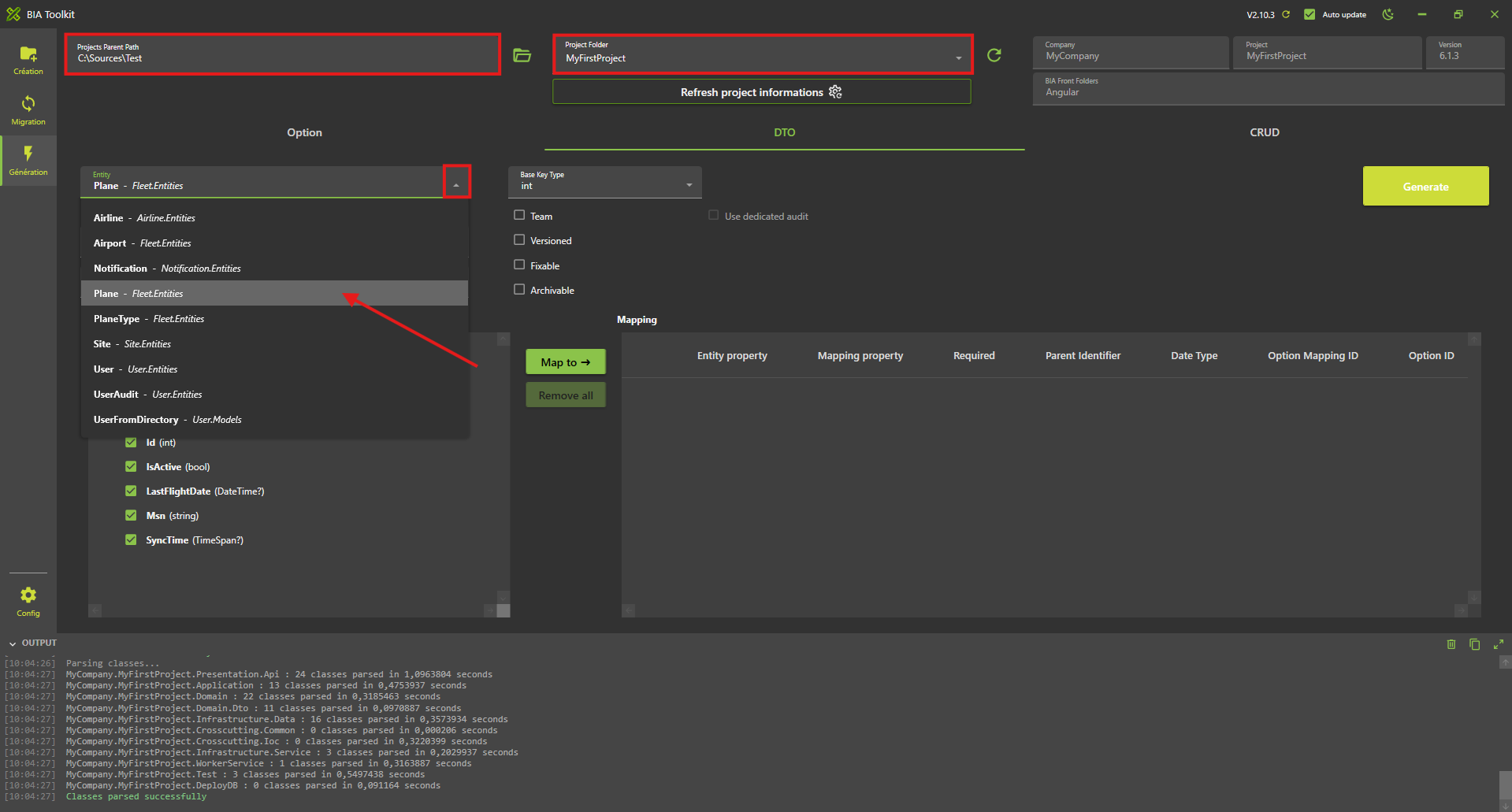

Create the DTO

Using BIAToolKit

• Open the BIAToolKi
• Go to "Modify existing project" tab
• Set the projects parent path and choose your project
• Go to tab 3 "DTO Generator"
• Select your entity Plane on the list

• Click on "Map to" button
• Check the required checkbox for the Id, Msn, Capacity and AirlineId mapping property
• Check AirlineId as Parent Identifier
• Then click the "Generate" button
• The DTO and the mapper will be generated

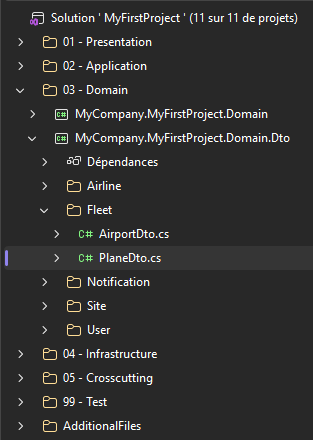

• Check in the project solution if the DTO and mapper are present

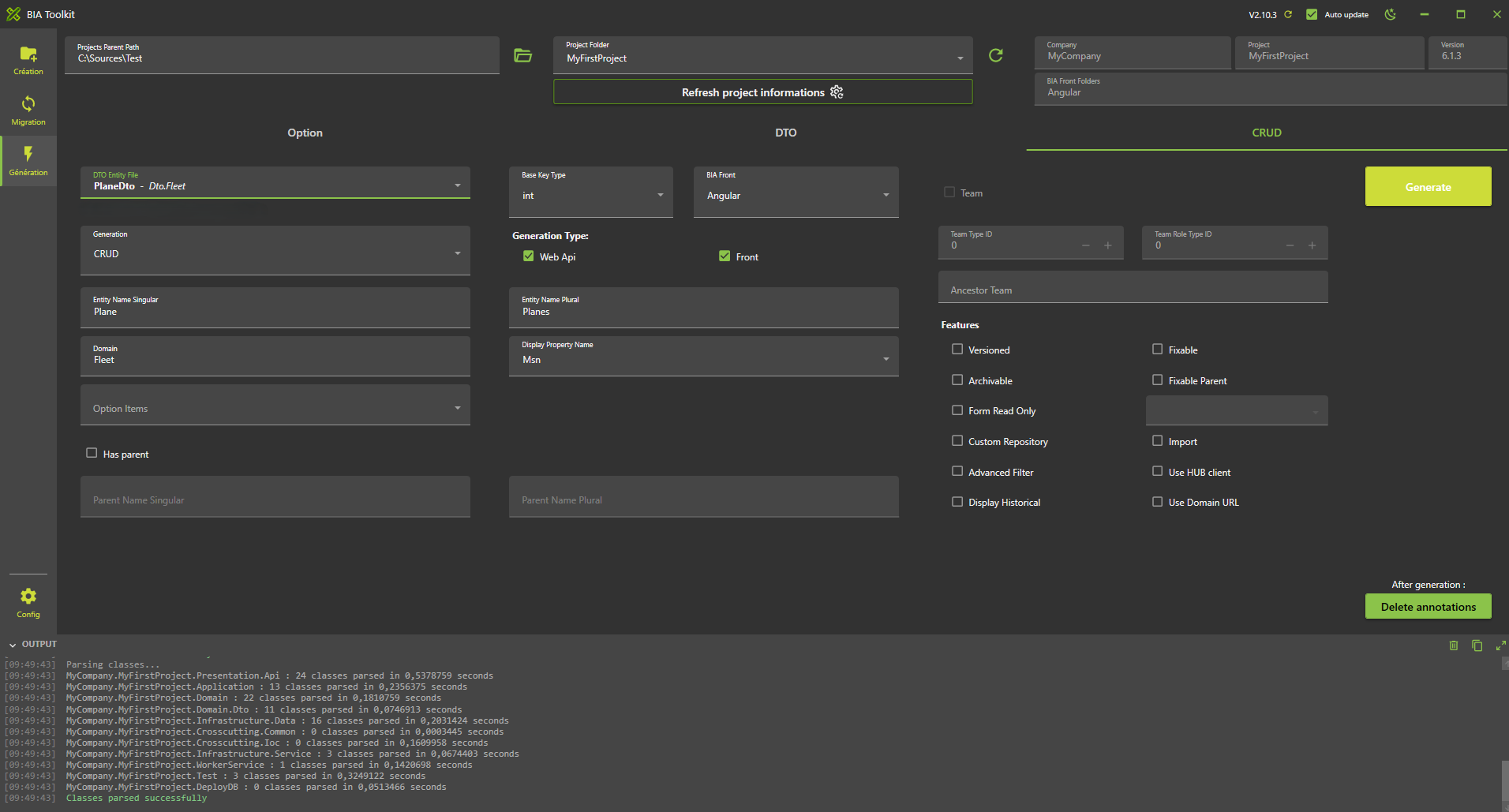

Create the CRUD

Using the BIAToolKit

• Start the BIAToolKit and go on "Modify existing project" tab*
• Set the projects parent path and choose your project
• Go to tab 4 "CRUD Generator"
• Fill the fields with the corresponding informations

• Click on generate button

Launch application generation

• In VSCode Stop all debug launched.
• Run and debug "Debug Full Stack"
• The swagger page will be open.
• Open a browser at address http://localhost:4200/
• Click on "APP.PLANES" in menu to display 'Planes' page.

Complete traduction

• Open 'src/assets/i18n/app/en.json' and add:

  "app": {
    ...,
    "planes": "Planes"
  },
  "plane": {
    "add": "Add plane",
    "capacity": "Capacity",
    "deliveryDate": "Delivery Date",
    "edit": "Edit plane",
    "isActive": "Active",
    "lastFlightDate": "Last flight date",
    "listOf": "List of planes",
    "msn": "Msn",
    "syncTime": "Synchronization time"
  }

• Open 'src/assets/i18n/app/es.json' and add:

  "app": {
    ...,
    "planes": "Aviones"
  },
    "plane": {
    "add": "Añadir avión",
    "capacity": "Capacidad",
    "deliveryDate": "Fecha de entrega",
    "edit": "Editar avión",
    "isActive": "Activo",
    "lastFlightDate": "Última fecha de vuelo",
    "listOf": "Lista de aviones",
    "msn": "Msn",
    "syncTime": "Tiempo de sincronización",
  }

• Open 'src/assets/i18n/app/fr.json' and add:

  "app": {
    ...,
    "planes": "Avions"
  },
  "plane": {
    "add": "Ajouter avion",
    "capacity": "Capacité",
    "deliveryDate": "Date de livraison",
    "edit": "Modifier avion",
    "isActive": "Actif",
    "lastFlightDate": "Date du dernier vol",
    "listOf": "Liste des avions",
    "msn": "Msn",
    "syncTime": "Heure de synchronisation"
  }

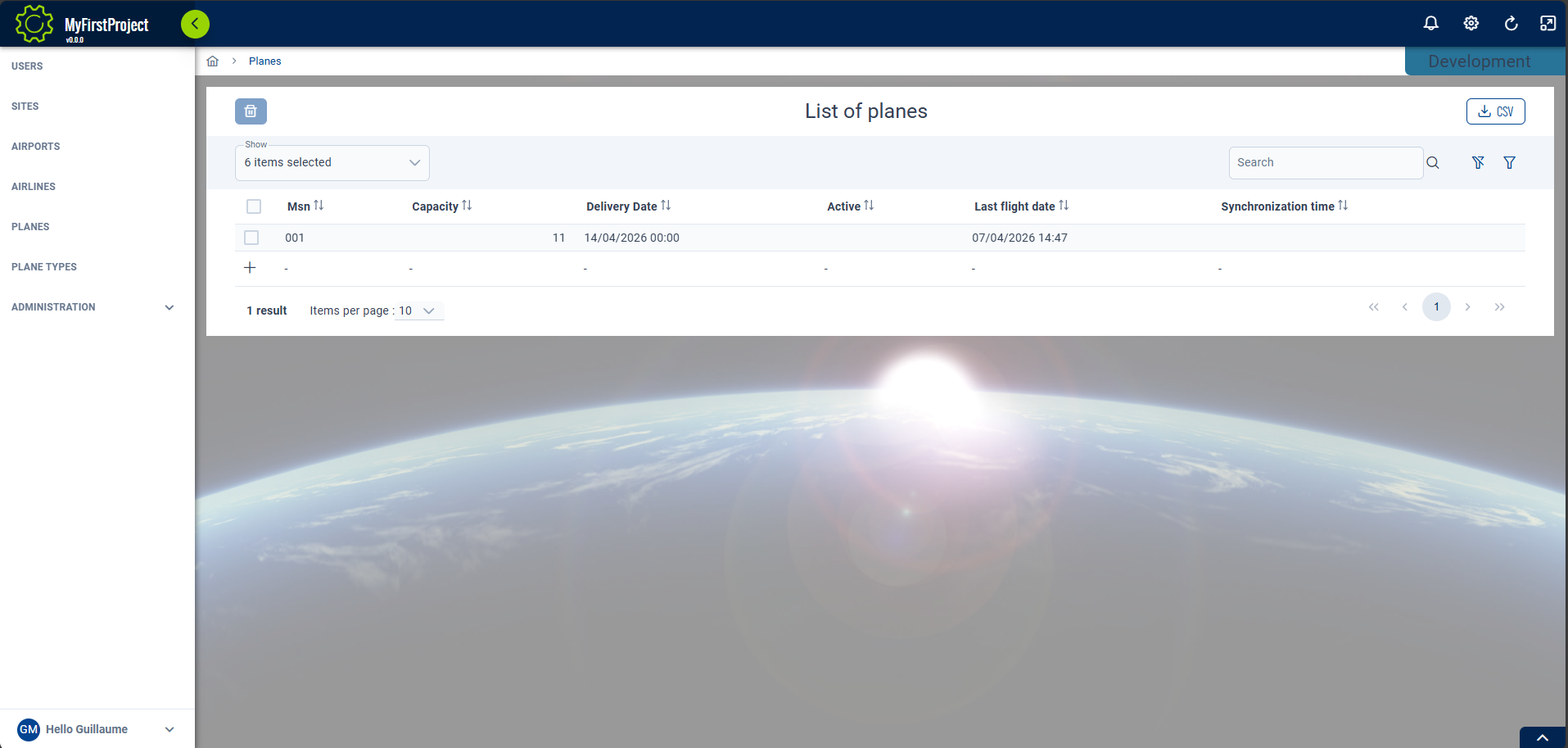

Test

• Open web navigator on address: http://localhost:4200/ to display front page
• Verify 'Plane' page have the good name
• Open 'Plane' page and verify labels have been replaced too.
• Since you already created an administrator account in the CreateYourFirstCRUD part you should be able to create a new Plane by clicking on the "+" and filling the row.
