Version: V5

Create your first CRUD

We will create in first the feature 'Plane'.

Create the Entity

Open with Visual Studio 2022 or VS Code the solution '...\MyFirstProject\DotNet\MyFirstProject.sln'.
Create the entity 'Plane':
In '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Domain' create 'Fleet' folder.
Create 'Entities' subfolder.
Create empty class 'Plane.cs' and add:

// <copyright file="Plane.cs" company="MyCompany">
//     Copyright (c) MyCompany. All rights reserved.
// </copyright>

namespace MyCompany.MyFirstProject.Domain.Fleet.Entities
{
    using System;
    using System.Collections.Generic;
    using System.ComponentModel.DataAnnotations.Schema;
    using BIA.Net.Core.Domain.Entity;

    /// <summary>
    /// The plane entity.
    /// </summary>
    public class Plane : BaseEntity<int>
    {
        /// <summary>
        /// Gets or sets the id.
        /// </summary>
        public int Id { get; set; }

        /// <summary>
        /// Gets or sets the Manufacturer's Serial Number.
        /// </summary>
        public string Msn { get; set; }

        /// <summary>
        /// Gets or sets a value indicating whether the plane is active.
        /// </summary>
        public bool IsActive { get; set; }

        /// <summary>
        /// Gets or sets the last flight date.
        /// </summary>
        public DateTime? LastFlightDate { get; set; }

        /// <summary>
        /// Gets or sets the delivery date.
        /// </summary>
        [Column(TypeName = "date")]
        public DateTime? DeliveryDate { get; set; }

        /// <summary>
        /// Gets or sets the daily synchronization hour.
        /// </summary>
        [Column(TypeName = "time")]
        public TimeSpan? SyncTime { get; set; }

        /// <summary>
        /// Gets or sets the capacity.
        /// </summary>
        public int Capacity { get; set; }
    }
}

Create the DTO

Using BIAToolKit

For more informations about creating a DTO, see Create a DTO with BIAToolkit documentation

Open the BIAToolkit
Go to "Modify existing project" tab
Set the projects parent path and choose your project
Go to tab 3 "DTO Generator"
Select your entity Plane on the list

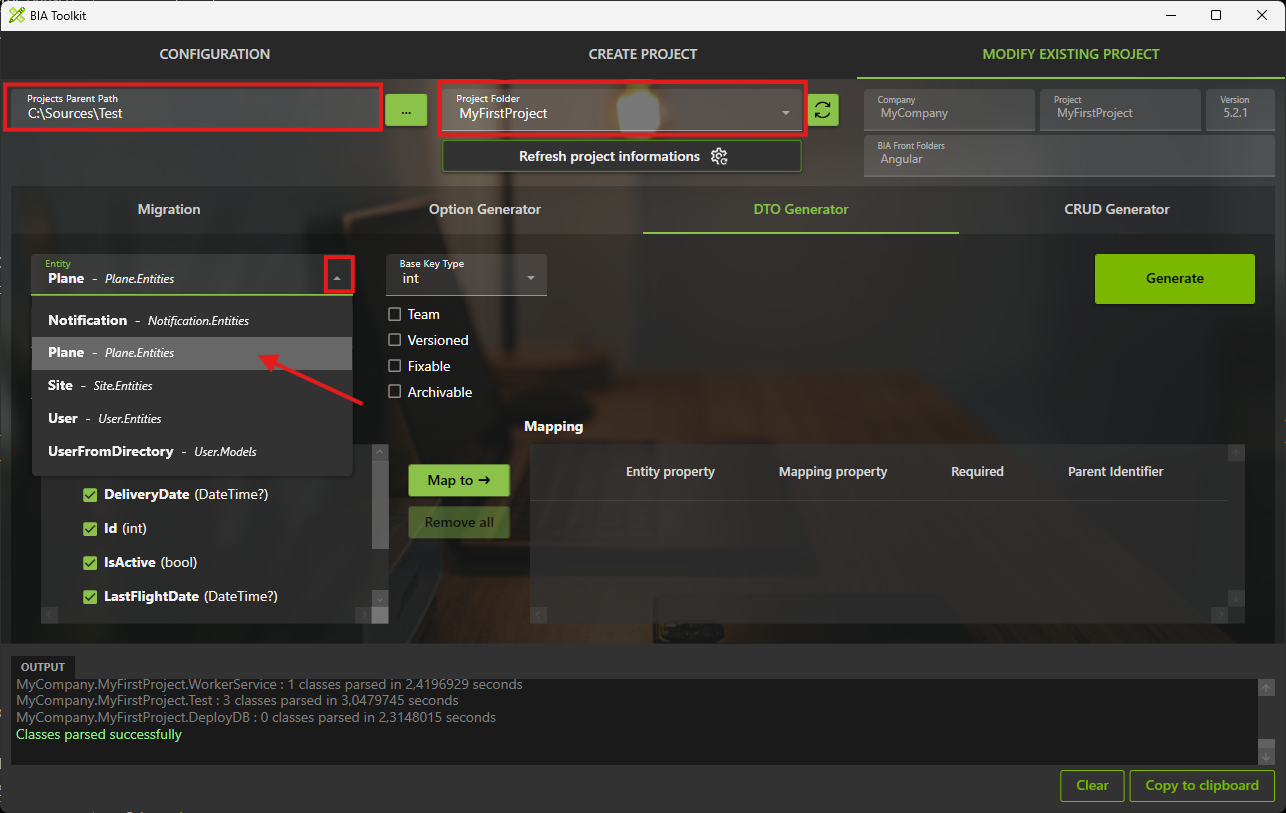

FirstCRUD_DTOGenerator_ChooseEntity

Click on "Map to" button
All the selected properties will be added to the mapping table that represents that properties that will be generated in your corresponding DTO
Check the required checkbox for the Id mapping property

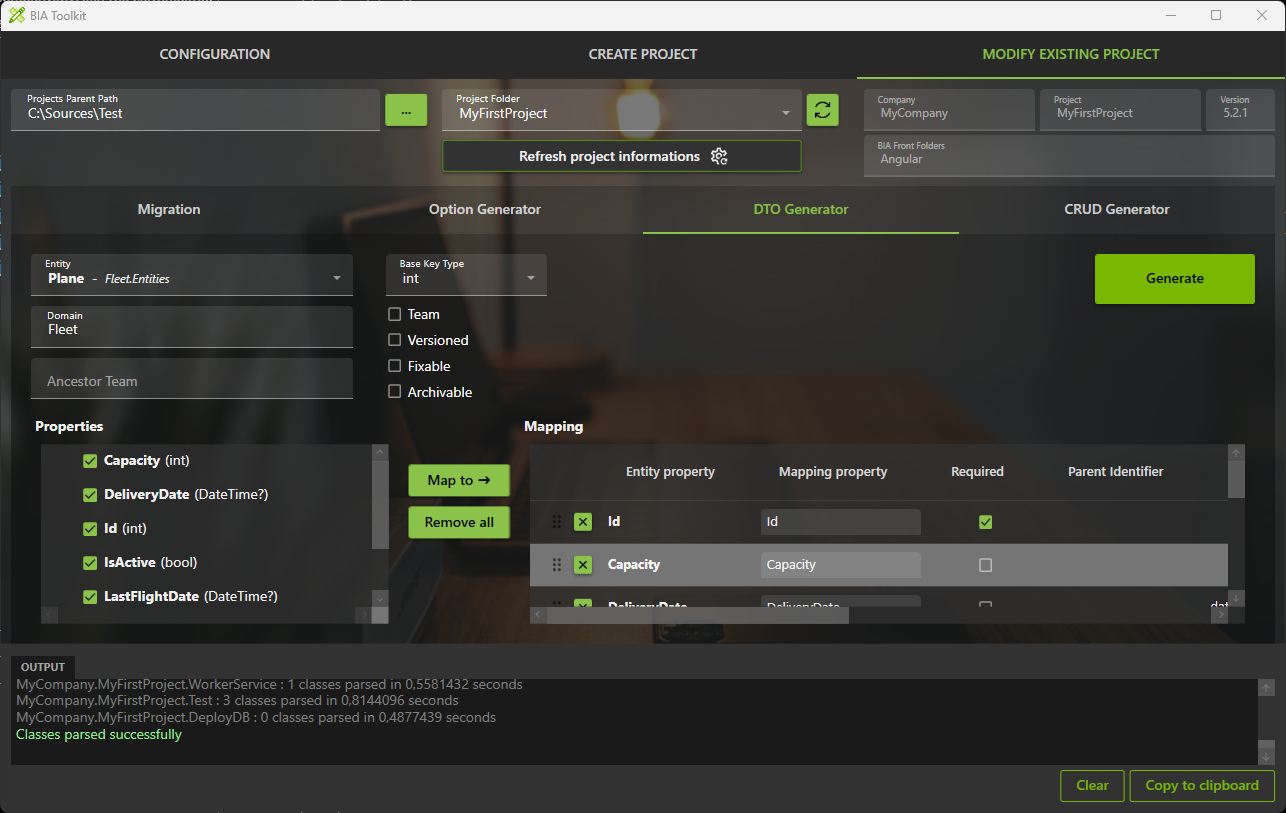

FirstCRUD_DTOGenerator_Mapping

Then click the "Generate" button
The DTO and the mapper will be generated
Check in the project solution if the DTO and mapper are present

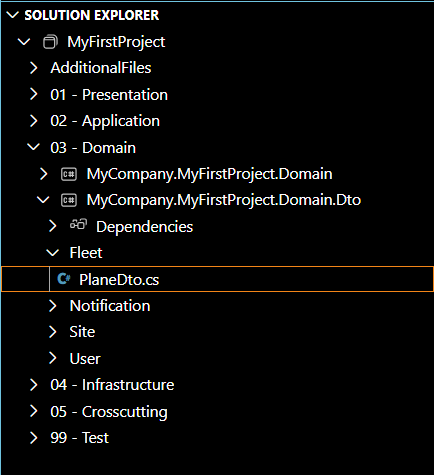

FirstCRUD_DTOGenerator_Result

Update Data

Create the Modelbuilder

In '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Infrastructure.Data\ModelBuilders', create empty class 'PlaneModelBuilder.cs' and add:

// <copyright file="FleetModelBuilder.cs" company="MyCompany">
// Copyright (c) MyCompany. All rights reserved.
// </copyright>

namespace MyCompany.MyFirstProject.Infrastructure.Data.ModelBuilders
{
    using Microsoft.EntityFrameworkCore;
    using MyCompany.MyFirstProject.Domain.Fleet.Entities;

    /// <summary>
    /// Class used to update the model builder for plane domain.
    /// </summary>
    public static class FleetModelBuilder
    {
        /// <summary>
        /// Create the model for projects.
        /// </summary>
        /// <param name="modelBuilder">The model builder.</param>
        public static void CreateModel(ModelBuilder modelBuilder)
        {
            CreatePlaneModel(modelBuilder);
        }

        /// <summary>
        /// Create the model for planes.
        /// </summary>
        /// <param name="modelBuilder">The model builder.</param>
        private static void CreatePlaneModel(ModelBuilder modelBuilder)
        {
            modelBuilder.Entity<Plane>().HasKey(p => p.Id);
            modelBuilder.Entity<Plane>().Property(p => p.Msn).IsRequired().HasMaxLength(64);
            modelBuilder.Entity<Plane>().Property(p => p.IsActive).IsRequired();
            modelBuilder.Entity<Plane>().Property(p => p.LastFlightDate).IsRequired(false);
            modelBuilder.Entity<Plane>().Property(p => p.DeliveryDate).IsRequired(false);
            modelBuilder.Entity<Plane>().Property(p => p.SyncTime).IsRequired(false);
            modelBuilder.Entity<Plane>().Property(p => p.Capacity).IsRequired();
        }
    }
}

Update DataContext file

Open '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Infrastructure.Data\DataContext.cs' file and declare the DbSet associated to Plane:

/// <summary>
/// Gets or sets the Plane DBSet.
/// </summary>
public DbSet<Plane> Planes { get; set; }

On 'OnModelCreating' method add the 'FleetModelBuilder.CreateModel':

  FleetModelBuilder.CreateModel(modelBuilder);

Update the DataBase

Create the database migration:

In VSCode (folder MyFirstProject) press F1
Click "Tasks: Run Tasks".
Click "Database Add migration SqlServer" if you use SqlServer or "Database Add migration PostGreSql" if you use PostGerSql.
Set the name "NewFeaturePlane" and press enter.
Verify new file 'xxx_NewFeaturePlane.cs' is created on '...\MyFirstProject\DotNet\MyCompany.MyFirstProject.Infrastructure.Data\Migrations' folder, and file is not empty.

Create the database migration:

In VSCode Run and Debug "DotNet DeployDB"
Verify 'Planes' table is created in the database.

Create the CRUD

Using BIAToolKit

For more informations about creating a CRUD, see Create a CRUD with BIAToolkit documentation

Start the BIAToolKit and go on "Modify existing project" tab*
Set the projects parent path and choose your project
Go to tab 4 "CRUD Generator"
Choose Dto file: PlaneDto.cs
Check "WebApi" and "Front" for Generation
Check "CRUD" for Generation Type
Domain name should be "Fleet"
Set Base key type as int
Verify "Entity name (singular)" value: Plane
Verify "Entity name (plural)" value: Planes
Choose "Display item": Msn

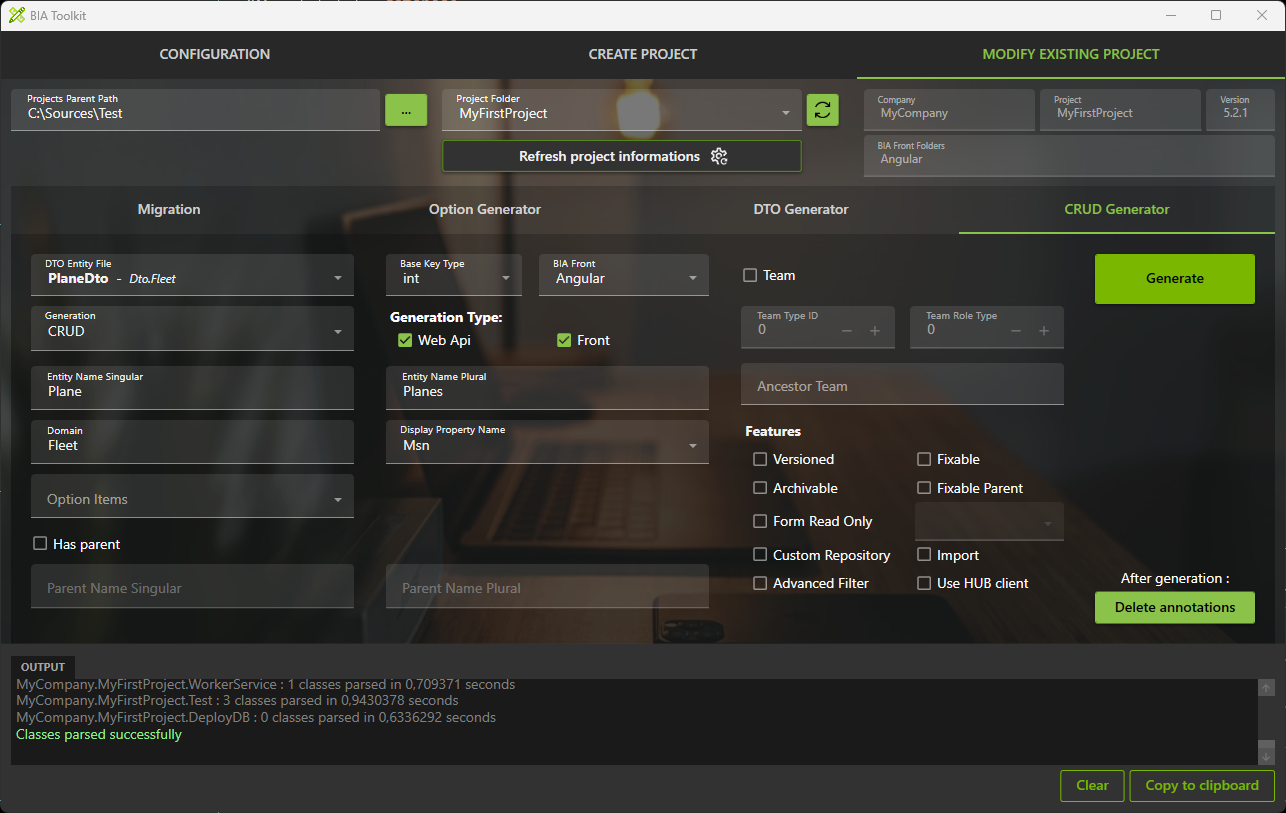

FirstCRUD_CRUDGenerator_Set

Click on generate button

Launch application generation

In VSCode Stop all debug launched.
Run and debug "Debug Full Stack"
The swagger page will be open.
Open a browser at address http://localhost:4200/
Click on "APP.PLANES" in menu to display 'Planes' page.

Add traduction

Open 'src/assets/i18n/app/en.json' and add:

  "app": {
    ...,
    "planes": "Planes"
  },
  "plane": {
    "add": "Add plane",
    "capacity": "Capacity",
    "deliveryDate": "Delivery Date",
    "edit": "Edit plane",
    "isActive": "Active",
    "lastFlightDate": "Last flight date",
    "listOf": "List of planes",
    "msn": "Msn",
    "syncTime": "Synchronization time"
  },

Open 'src/assets/i18n/app/fr.json' and add:

  "app": {
    ...,
    "planes": "Avions"
  },
  "plane": {
    "add": "Ajouter avion",
    "capacity": "Capacité",
    "deliveryDate": "Date de livraison",
    "edit": "Modifier avion",
    "isActive": "Actif",
    "lastFlightDate": "Date du dernier vol",
    "listOf": "Liste des avions",
    "msn": "Msn",
    "syncTime": "Heure de synchronisation"
  },

Open 'src/assets/i18n/app/es.json' and add:

  "app": {
    ...,
    "planes": "Planos"
  },
  "plane": {
    "add": "Añadir plano",
    "capacity": "Capacidad",
    "deliveryDate": "Fecha de entrega",
    "edit": "Editar plano",
    "isActive": "Activo",
    "lastFlightDate": "Última fecha de vuelo",
    "listOf": "Lista de planos",
    "msn": "Msn",
    "syncTime": "Tiempo de sincronización"
  },

Test

Open web navigator on address: http://localhost:4200/ to display front page
Verify 'Plane' page have the good name (name put on previous file).
Open 'Plane' page and verify labels have been replaced too.
To be able to add element in this table you need to be "administrator" of the current site:
- Click on "site menu" and click on "+" button.
- Enter a title like "Site 1" and click the button "+ Add"
- Now click on the row "Site 1" to enter in the List of members of the "Site 1"
- Click on "+"" button to open add member screen
- Select you name in user combo and check the role "Site administrator"
- Click on "+" button. => You are now "Site administrator" of the "Site 1"
- Refresh the token with the round arrow in the upper right corner.

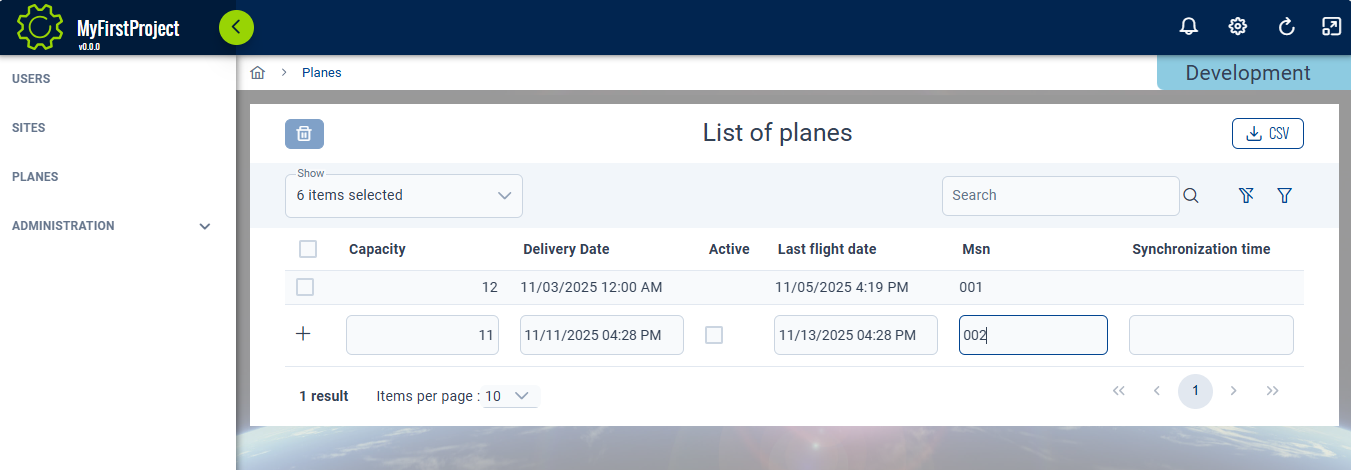

- Navigate to the Plane menu. => you should be able to enter new value in the row beginning with "+" => when you leave the row the data will be record in the database.
