Templates

warning

Only for BIAToolKit maintainers

This document explains how the BIAToolkit use templates to generate Option, DTO and CRUD features, and how to maintain them.

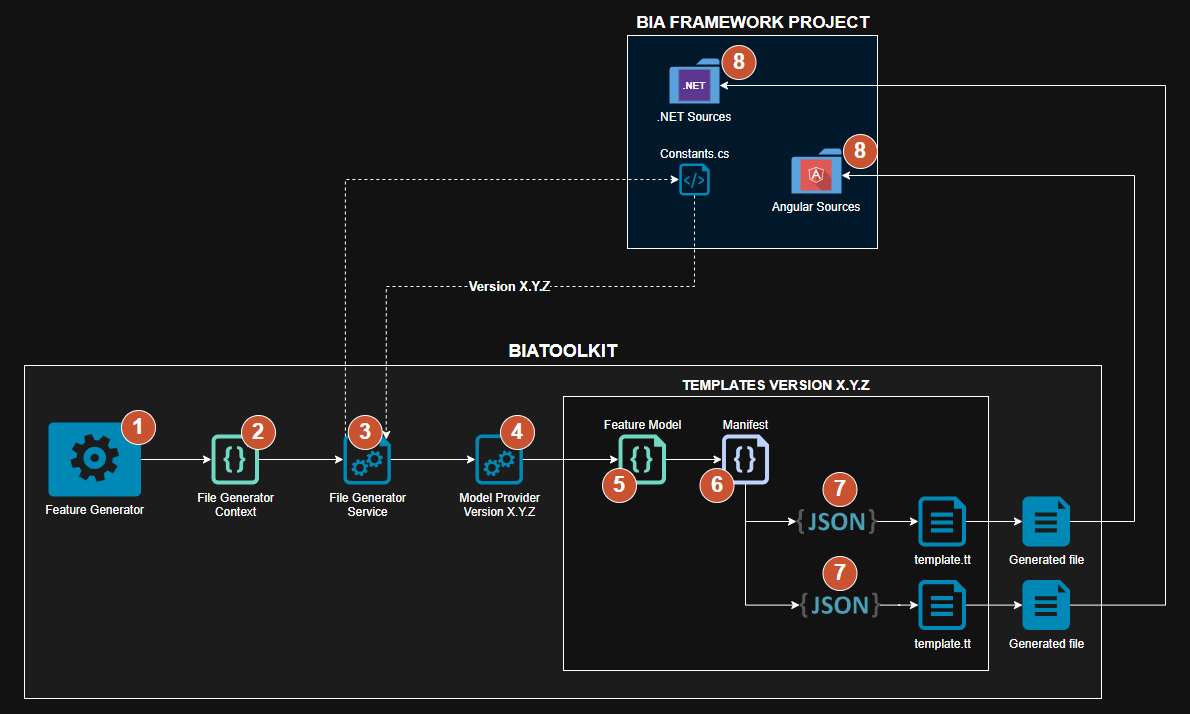

Diagram​

Diagram

  1. Developper wants to generate a feature (Option, DTO, CRUD) for his BIA Framework project using the BIAToolKit
  2. A file generator context is created based on the selected feature to generate
  3. The file generator service gets the current project BIA Framework Version (X.Y.Z) from the Constants.cs file of the .NET sources
  4. The file generator asks for the corresponding model provider according to the current project version (X.Y.Z)
  5. A feature model corresponding to the target framework version and feature to generate is created
  6. The model provider read the template's manifest of the correspondings feature kind and project version
  7. Each entry of the manifest use the template file based on the feature model data to generate the file
  8. The generatd file is created and copied or included into his target directory or file where the path is provided by the manifest

Version Templates​

The templates for a dedicated version (or a range) corresponding to a bunch of various elements :

  • The templates .tt used to generate the files
  • The models used to inject data into the templates
  • The mocks of the models used to simulate data when creating the templates
  • The manifest used to list the templates data (.tt file and target file into the project) that must be used for each feature kind

Each bunch corresponds to a breaking changes version of the BIA Framework. It means that if you have a minor version that provides any changes of one of the files that must be generated using the templates, you will have a dedicated bunch of templates for this version.

Commonly, there is a new bunch created for each major version.
Unless a new major version, the bunch must cover all versions until the new one.

info

The bunch are located into the BIA.ToolKit.Applications.Templates

Example :
The templates for the version 5.0.0 will be located into the namespace BIA.ToolKit.Applications.Templates._5_0_0.
They will be used for all the versions 5.* unless a new breaking minor version is released : here, the 5.1.0.
In that case, the new templates will be located into the namespace BIA.ToolKit.Applications.Templates._5_1_0.

tip

The new bunch must be copied from the previous one and adapted for each concerned elements :

  1. Copy the previous folder and rename it with your new version identifier _X_Y_Z
  2. Rename in this folder old _X_Y_Z references to new _X_Y_Z
  3. Do the same for X.Y.Z references between old and new

Models​

Templates models corresponds to the model of data that will be used into the templates files .tt to generate the files for a dedicated feature.

It must exist a model for each kind of feature to generate, and a dedicated interface for them.

info
  • The templates models are located into the namespace BIA.ToolKit.Applications.Templates._X_Y_Z.Models
  • The templates models common elements are located into the namespace BIA.ToolKit.Applications.Templates._X_Y_Z.Common
  • The templates models interfaces are located into the namespace BIA.ToolKit.Applications.Templates._X_Y_Z.Common.Interfaces
tip

If the previous version models has defined methods or properties, you can edit the copied models from the previous version bunch by just inheriting from the previous model :

EntityCrudModel.cs
namespace BIA.ToolKit.Application.Templates._X_Y_Z.Models
{
    public class EntityCrudModel<TPropertyCrudModel> : _U_V_W.Models.EntityCrudModel<TPropertyCrudModel>
        where TPropertyCrudModel : class, IPropertyCrudModel
        {}
}

Mocks​

Mocks are simply templates models implementation used into the templates files .tt to simulate data when editing the template file.

info

The templates mocks are located into the namespace BIA.ToolKit.Applications.Templates._X_Y_Z.Mocks

Templates files​

The templates are T4 Text Template (.tt) powered by the tools of Microsoft Visual Studio (Official Documentation).

tip

Install and use the extension T4 Editor into Visual Studio

Into the dedicated namespace BIA.ToolKit.Applications.Templates._X_Y_Z.Templates you will find :

  • the templates for the .NET and Angular files. The structures of these folders are the same as the BIA Framework version used for
  • T4 includes, the Text Templates files that can be used as include for all the other templates. There is one common template include, and one for each kind of feature to generate

Includes​

Add into your include all the assembly, namespaces references, model parameters or variable declaration that sould be used for your other templates :

Includes\Template.include
<#@ assembly name="$(TargetPath)" #>
<#@ assembly name="System.Core" #>
<#@ import namespace="System.Linq" #>
<#@ import namespace="System.Text" #>
<#@ import namespace="System.Collections.Generic" #>
<#@ import namespace="BIA.ToolKit.Application.Templates" #>
<#@ import namespace="BIA.ToolKit.Application.Templates.Common.Models" #>
<#@ import namespace="BIA.ToolKit.Application.Templates.Common.Interfaces" #>
<#@ import namespace="BIA.ToolKit.Application.Templates._X_Y_Z.Models" #>
<#@ import namespace="BIA.ToolKit.Application.Templates._X_Y_Z.Mocks" #>
Includes\TemplateCrud.include
<#@ include file="Template.ttinclude" #>
<#@ parameter type="BIA.ToolKit.Application.Templates._X_Y_Z.Models.EntityCrudModel<BIA.ToolKit.Application.Templates._X_Y_Z.Models.PropertyCrudModel>" name="Model" #>
<# var ModelInstance = Model ?? new EntityCrudMock(); #>
tip
  • include the target file with the relative or complete path
  • parameter refers to the class that will be used into the template as the Model variable
  • ModelInstance is a variable mapped to the Model variable if exists, otherwise a new instance of a mock of the same class model. The last case is commonly used when generating the file while editing the template into Visual Studio

Then, add the reference to the T4 include file into your T4 template :

DotNet\MyTemplate.tt
<#@ include file="$(T4Includes_X_Y_Z)\TemplateCrud.ttinclude" #>
warning

You must have into the BIA.ToolKit.Application.Templates.csproj a property T4Includes_X_Y_Z corresponding to the path of your includes for the version X.Y.Z :

BIA.ToolKit.Application.Template.csproj
<Project>
  <PropertyGroup>
    <T4Includes_X_Y_Z>$(MSBuildProjectDirectory)\_X_Y_Z\Templates\Includes</T4Includes_X_Y_Z>
  </PropertyGroup>
</Project>

Templates​

  • each Text Template file must be created into a folder that match the same structure as the target file to generate into the BIA Framework project
  • the name fo the Text Template file should match as possible the same target file name to generate and ends with Template before the extension :
    • DotNet\Application\EntityAppServiceTemplate.tt used to generate the DotNet\Company.Project.Application\{Domain}\EntityAppService.cs ({Domain} is a context property of the entity)
  • the Text Templates used for partial content should indicates into their name the partial state, the markup name and optionally the feature kind :
    • DotNet\CrosscuttinCommon\Enum\PartialCrudRoleIdTemplate.tt used to generate partial content for markup RoleId into the file DotNet\Company.Project.Crosscutting.Common\Enum\RoleId.cs when generating a CRUD feature
warning

Each template must at least implements these lines :

MyTemplate.tt
<#@ template debug="true" hostspecific="true" language="C#" #>
<#@ include file="$(T4Includes_X_Y_Z)\TemplateCrud.ttinclude" #>
<#@ output extension=".cs" #>
  • template declaration is used for Visual Studio to generate the file
  • include the target include file
  • declare the output extension of your file

When saving a template, Visual Studio will automatically generate the file into the same folder and under your text template item into your solution explorer.
If an error occurs when generating the template, the error will be displayed into the Error List of your Visual Studio instance.

Manifest​

The manifest contains all the files to generate for each feature kind of a version read by the file generator service :

BIA.ToolKit.Application.Templates\_X.Y.Z\manifest.json
{
  "version": "X.Y.Z",
  "features": [
    {
      "type": "Option",
      "angularTemplates": [
        {
          "inputPath": "src\\app\\domains\\services\\EntityOptionDasServiceTemplate.tt",
          "outputPath": "src\\app\\domains\\{Entity}-option\\services\\{Entity}-option-das.service.ts"
        }
      ],
      "dotNetTemplates": [
        {
          "inputPath": "Domain\\Mappers\\EntityOptionMapperTemplate.tt",
          "outputPath": "{Project}.Domain\\{Domain}\\Mappers\\{Entity}OptionMapper.cs"
        },
        {
          "inputPath": "CrosscuttingCommon\\PartialOptionRightsTemplate.tt",
          "outputPath": "{Project}.Crosscutting.Common\\Rights.cs",
          "isPartial": true,
          "partialInsertionMarkup": "RightsForOption"
        }
      ]
    }
  ]
}
info
  • complete the manifest for all type of features (Dto, Option, Crud...)
  • each template item should have an inputPath and an outputPath
    • inputPath is the path to the template file into the BIA.ToolKit.Application.Templates\_X_Y_Z\Templates folder
    • outputPath is the path to the target file into the target BIA Framework project
    • these path are both relatives to their source kind (DotNet or Angular)
  • you can mark a template as partial with isPartial property
    • you must then provide the partialInsertionMarkup value that corresponds to the area into the target file where the generated content will be added
  • you can use templates property between {} into path properties that will be replaced by the file generator service :
    • {Project} : the target project name
    • {Domain} : the target entity's domain name
    • {Entity} : the target entity's name (Pascal case)
    • {EntityPlural} : the target entity's name plural (Pascal case)
    • {Parent} : the target entity's parent name (Pascal case)
    • {ParentRelativePath} : the target entity's parent feature relative path into Angular project
    • {ParentChildrenRelativePath} : the target entity's parent feature of children relative path into Angular project

File Generator Service​

This service is used by the BiaToolKit to generate the files using the templates configured previously.

It must be initialized by calling the method Init() when a BIA Framework project is chosen.

Then, after calling the target feature method to generate from the service :

  1. The service will get from the model provider factory the corresponding model provider according to the target project version
  2. The service will use the model provider method to get the corresponding model template to use for the feature from the file generator context
  3. The service will generate all the files listed into the manifest of the corresponding version by using T4 tools and template model
  4. The service will clean the generated files by ordering using and apply a prettier specifically to the angular files
info

If the content of a generated file is empty, it will be ignored

Context​

This context is used to map the UI properties from the BiaToolKit to the generation context that will be used to generate the files.

For each kind of feature, you must implement the corresponding context by inheritance of FileGeneratorContext abstract class :

FileGeneratorDtoContext
public sealed class FileGeneratorDtoContext : FileGeneratorContext
{
    public List<MappingEntityProperty> Properties { get; set; } = [];
    public bool IsArchivable { get; set; }
    public bool IsFixable { get; set; }
    public bool IsVersioned { get; set; }
}

Model Provider​

The model provider is the provider of the template's models for each version X.Y.Z available into the templates from the FileGeneratorContext provided.

They all must implements the interface IFileGeneratorModelProvider :

IFileGeneratorModelProvider
internal interface IFileGeneratorModelProvider
{
    List<BiaFrameworkVersion> CompatibleBiaFrameworkVersions { get; }
    object GetDtoTemplateModel(FileGeneratorDtoContext dtoContext);
    object GetOptionTemplateModel(FileGeneratorOptionContext optionContext);
    object GetCrudTemplateModel(FileGeneratorCrudContext crudContext);
}
info
  • CompatibleBiaFrameworkVersions is the list of BiaFrameworkVersion compatible with the version X.Y.Z of the templates
    • You can add each precise compatible version (4.0.0, 4.1.0, 4.2.0, 4.2.1...)
    • Or you can set a specific range (4.*, 4.1.*...)
  • Each Get{Feature}TemplateModel for each feature kind are used to map the provided feature file generator context to the corresponding feature model template

Each model provider can inherit from the FileGeneratorModelProviderBase by providing each template model of the corresponding version :

FileGeneratorModelProviderBase
internal abstract class FileGeneratorModelProviderBase<TEntityDtoModel, TEntityCrudModel, TEntityOptionModel, TPropertyDtoModel, TPropertyCrudModel>(IConsoleWriter consoleWriter) : IFileGeneratorModelProvider
    where TPropertyDtoModel : class, IPropertyDtoModel, new()
    where TEntityDtoModel : class, IEntityDtoModel<TPropertyDtoModel>, new()
    where TPropertyCrudModel : class, IPropertyCrudModel, new()
    where TEntityCrudModel : class, IEntityCrudModel<TPropertyCrudModel>, new()
    where TEntityOptionModel : class, IEntityOptionModel, new()
FileGeneratorModelProvider_X_Y_Z
namespace BIA.ToolKit.Application.Services.FileGenerator.ModelProviders
{
    using System.Collections.Generic;
    using BIA.ToolKit.Application.Helper;
    using BIA.ToolKit.Application.Templates._X_Y_Z.Models;
    using BIA.ToolKit.Common;

    internal class FileGeneratorModelProvider_X_Y_Z(IConsoleWriter consoleWriter) :
        FileGeneratorModelProviderBase<EntityDtoModel<PropertyDtoModel>,
        EntityCrudModel<PropertyCrudModel>,
        EntityOptionModel,
        PropertyDtoModel,
        PropertyCrudModel>(consoleWriter)
    {
        public override List<BiaFrameworkVersion> CompatibleBiaFrameworkVersions =>
        [
            new("X.Y.Z"),
        ];
    }
}
warning
  • Create the implementation with the following naming convention : FileGeneratorModelProvider_X_Y_Z.cs
  • Add a new instance of your model provider into the FileGeneratorModelProviderFactory

Unit Tests​

A dedicated unit test project for the templates is available : BIA.ToolKit.Test.Templates.

Its purpose is to compare a specific version of BIADemo to the corresponding templates for each features that will be used for this version by the file generator service into the BiaToolKit.

Usage​

  1. Clone the BIADemo repository
  2. Checkout the target version
  3. Clone the BIAToolKit repository into the same root folder as BIADemo
  4. Go into BIADemo sources and run the script BIADemo\Tools\4-BIADemo-BIAToolKit.ps1
  5. A packaged version of BIADemo named as BIADemo_X.Y.Z.zip without the specific content between BIADemo markups will be created into your sources of BIAToolkit into the subfolder BIADemoVersions
  6. Open the BIAToolkit solution into Visual Studio
  7. Open the test explorer of the BIAToolKit solution into Visual Studio
  8. Edit into the FileGeneratorTestFixture class the biaDemoZipPath variable and referenceProject.FrameworkVersion to the corresponding values of the packaged version of BIADemo to compare
  9. Edit if necessary the tests files Generate{Feature}Test.cs to match the models of the BIADemo version to compare with
  10. Open the Solution Explorer into Visual Studio and run the tests

Handle errors​

AllFilesNotEqualsException​

The reference file from BIADemo and the generated file from BIAToolKit are not equals.

You can use the generated command begining by code and execute it into a new shell to open a new Visual Studio Code diff window.
If you don't have Visual Studio Code, you can compare by yourself the two files by using the file's path into the command.

tip

The error can provide from the template content or from specific code into the BIADemo file.

PartialInsertionMarkupNotFoundException​

The markup to insert the partial content has not been found into the BIADemo file.

tip

Check the partialInsertionMarkup of the template item into the manifest.json and the content of the BIADemo file (use the outputPath to find it). You can verify the templates too if the target file to fill with partial content is a generated file.

ReferenceFileNotFoundException​

The expected reference file into BIADemo has not been found.

tip

Check the outputPath of the template item into the manifest.json

GeneratedFileNotFoundException​

The expected generated file from BIAToolKit has not been found.

tip

Check the template content : if the generated content is empty, the file is not created

GenerationFailureException​

The generation process has failed.

tip

The details of the generation and the exceptions can be found by analyzing the Tests output into Visual Studio.

In depth​

  • npm i command will be executed the first time the choosen BIADemo version will be unzipped into the Angular project in order to use Prettier
  • generated files will be created in AppData\Local\Temp\BIAToolKitTestTemplatesGenerated\{Feature}_{Entity}
    • {Feature} : generated feature (Dto, Option, Crud...)
    • {Entity} : entity name used for the feature
  • you can ignore partial markup into reference file when comparing it to the generated file when calling the corresponding method RunTestGenerate{Feature}AllFilesEqualsAsync by providing the list of markups as partialMarkupIdentifiersToIgnore parameter
  • a preProcess action is executed for the execution of CRUD tests in order to compute angular parent location
  • the target files where partial content should be included are imported from the reference BIADemo version into the output location in order to be filled by the file generator service
  • the comparison for partial content extracts each partial part from the reference path and the generated path and stored into unique partial files named as the target file followed by _Partial_{InsertionMarkup}{Entity} into reference and generated folder
  • all the content between \\ Begin BIAToolKit Generation Ignore and \\ End BIAToolKit Generation Ignore in the reference's files will be ignore for the comparison
